Plantation Shutter Styling
Plantation shutters feature five key styling components: louver size, tilt control, paint color, split-tilt, and frame profile. At HTX Shutters, these options are standard — no extra cost. Together, they define the look and function of your shutters, whether your home is formal and traditional or modern and contemporary.
Shutter Styling Options
Louver Size
2.5", 3.5" or 4.5" Wide Slats
Louvers are the horizontal slats that rotate to open or close a shutter. Larger width louvers maximize incoming light and minimize obstructions to outdoor views. About 65% of our clients choose the larger 4.5" louvers, while about 35% opt for the smaller 3.5" louvers. We also offer 2.5" louvers, which are mostly used in Heights, Bellaire or West University homes where window casing depth is limited.
// See photos of 2.5" louvers.// See photos of 3.5" louvers.// See photos of 4.5" louvers.
Tilt Control
Front/Center or Hidden/Rear
Tilt rods are the mechanisms that interconnect rotating louvers. Front tilt rods are visible and located front-and-center on a shutter, while hidden tilt rods are on the rear and do not impede views. Rear/hidden tilt is more robust, whereas the front/center tilt control is more likely to have parts that can break, since there are staples interconnecting the tilt control rod to the shutter louvers. Most of our clients choose the rear/hidden tilt, since it is maintenance-free and presents a cleaner aesthetic.
// See what front/center tilt looks like.// See what rear/hidden tilt looks like.
Paint Color
Any Sherwin-Williams Color
Shutters look best when the color of the paint matches the color of the surrounding window sill or trim. When the shutter color doesn't match the surrounding trim, the shutters look like an afterthought that wasn't well integrated. Even when the color is white, the specific shade makes a difference. We invested in a commercial spectrophotometer, so that we can automatically match the paint color on your existing window sill or trim to our Sherwin-Williams catalogue. We can paint to any Sherwin-Williams color.
// See our favorite shades of white.
Split-Tilt
50/50, 33/67 or No Split
Split-tilt is the ability to separate the louvers of a shutter into top and bottom sets, which increases flexibility by balancing privacy and sunlight. We do not require fixed "middle divider rails" or "mid-rails", which normally would obscure your view. Without a middle divider rail, there is more flexibility when choosing a split-tilt point, since you don't have to worry about your view being blocked. Bedrooms are often good candidates for 33/67, where more privacy is desired. 50/50 works well in rooms where some degree of privacy and light control is desired. Factors that affect the split-tilt decision include window sill height, window height, floor/level, neighboring vantage points and existing privacy from fences/trees.
// See what a 50/50 split looks like.// See what a 33/67 split looks like.
Frame Profiles
6 Types: Traditional to Modern
Frames are the trim pieces that surround a shutter. If a window already has trim on all four sides, only a minimal frame may be required. Most commonly, windows have a bottom window sill with sheetrock/drywall on the left/top/right sides. In these cases, a we construct a three-sided frame to conceal the rough drywall edges, which results in a polished "trimmed" window that looks a little more finished. We offer both inside-mount and outside-mount frames. Most of our clients (>95%) choose inside-mount frames, but some clients choose outside-mount frames to retain their"tilt-in"window functionality.
// View our inside-mount frame profiles.// See installed inside-mount frames.// View our outside-mount frame profiles.// See installed outside-mount frames.
Other Design Considerations
Wider Panels
Shutters 50% wider than "poly"
One advantage of wood over poly shutters is the ability to build wider shutter panels, which results in a more clear and unimpeded view. Our standard is to build shutter panels up to 36" wide (a common window size), whereas poly can only span 26" with a single panel. This means that the typical window would need to be broken into two-panels if built out of poly. We even build our wood single panels up to 47" wide in special circumstances.
// See how panel width impacts styling.
Refined Arches
Custom curved shutters & frames
We don't use dated "sunburst" designs to cover arched windows. We built curved plantation shutter frames with curved shutter panels nested within them. This results in functional louvers all the way up through the curve. Whether you have a "perfect" arch or an "eyebrow" arch, we're able to build beautiful shutters for each unique shape. While many companies charge extremely high prices for arches, we price our arches typically a few hundred dollars more than a standard, rectangular shutter.
// See how we build arched shutters.

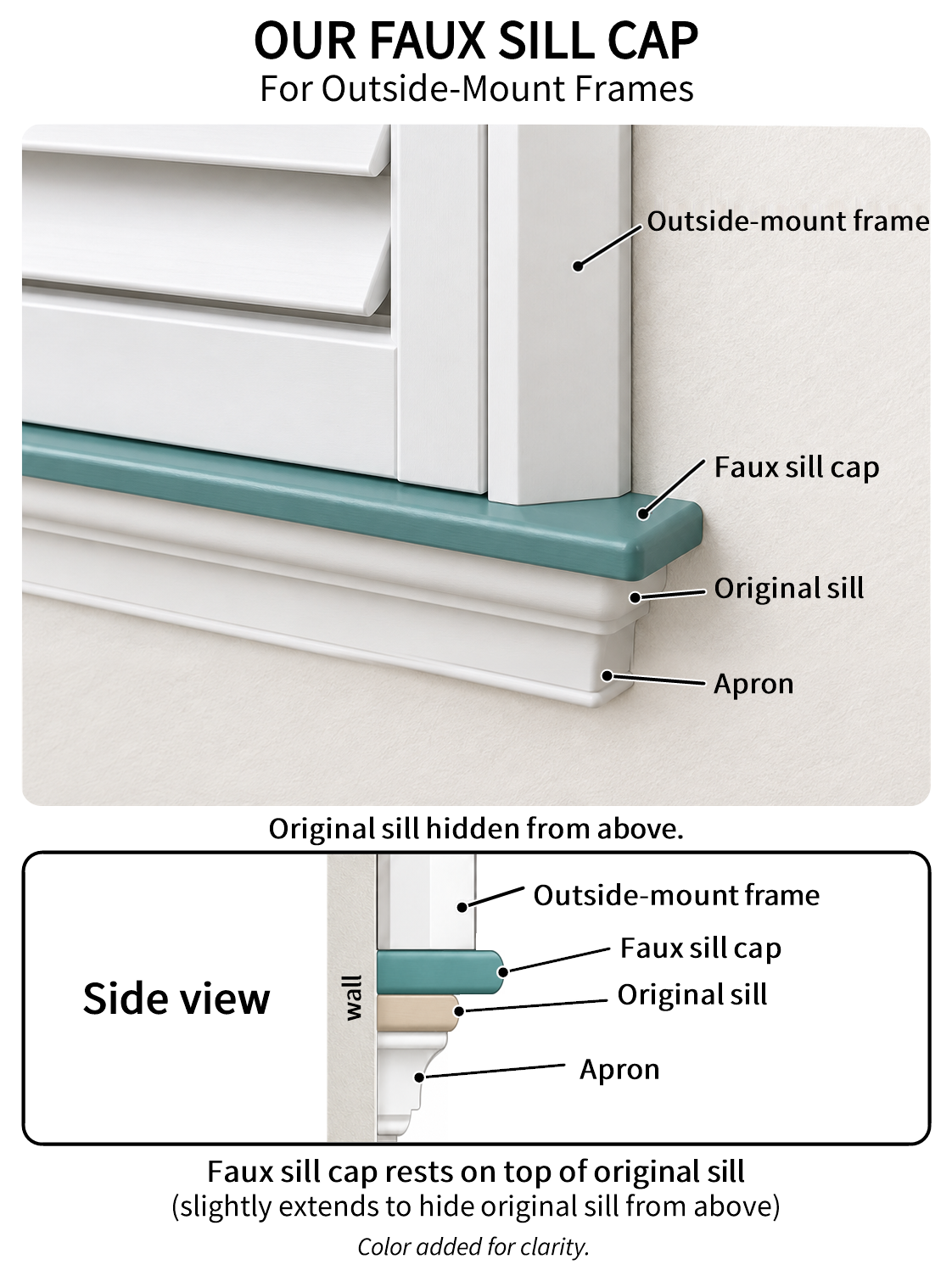

Faux Sill Caps
No "overhang" for frames
One of the biggest aesthetic issues of outside-mount frames is that most manufacturers build them so that the frame sticks out over your existing window sill. The overhanging frame looks out-of-place and like an afterthought. To combat this, we build our outside-mount frames with a faux "sill cap". This bottom sill cap sits on top of your existing window sill and visually serves as a replacement. From most angles, it is undetectable that our new sill cap isn't part of your original trim. The frame profile doesn't overhang, and the frame looks a lot more built-in and integrated with the existing window sill.
// See how we minimize frame overhang.

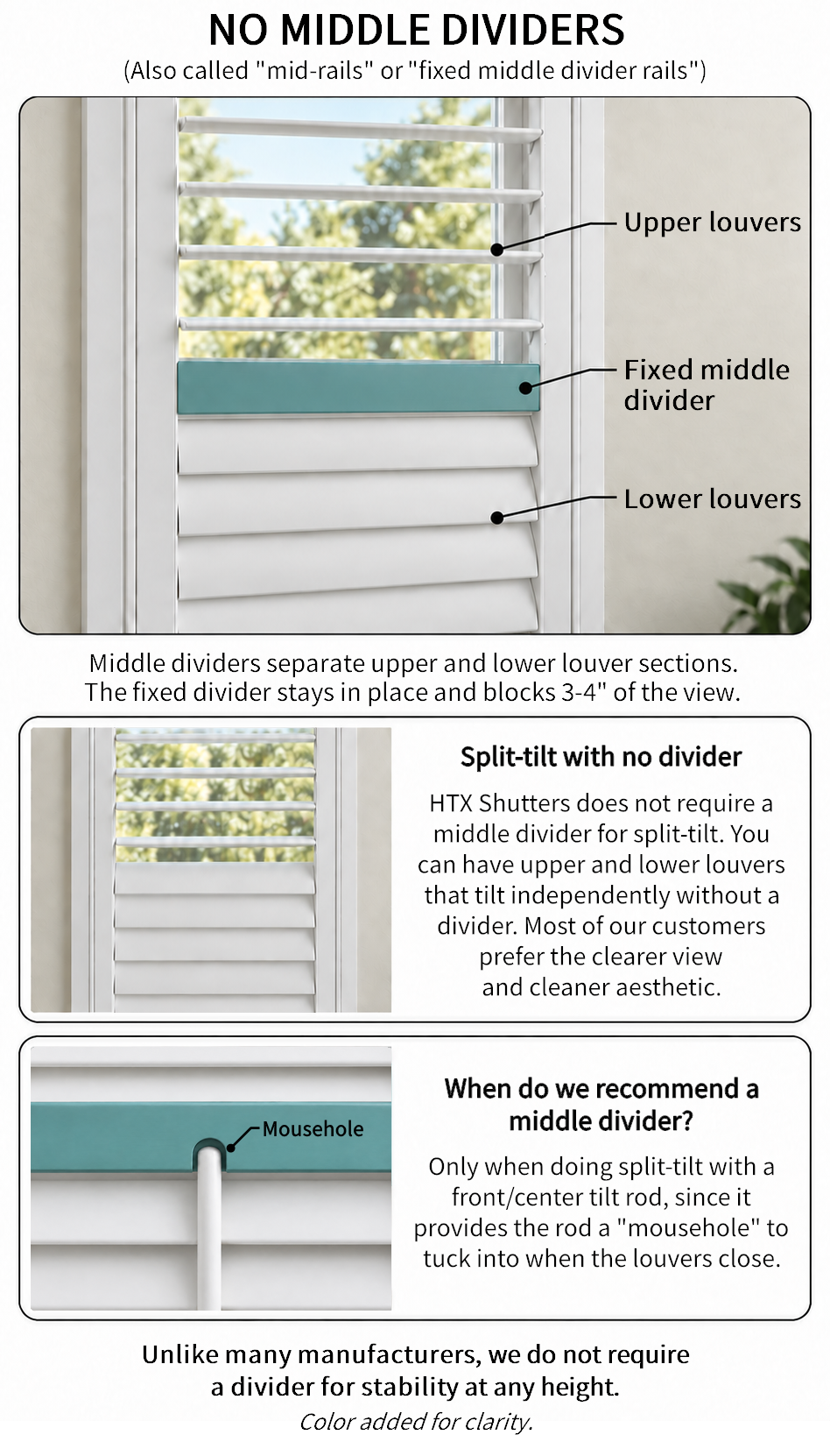

No Middle Dividers
No fixed "dead" area dividers
Our engineered design is stable and does not require the “fixed middle divider rails” that other manufactures require. This fixed middle divider rail is typically a 3” or 4” dead section that separates a top and bottom set of louvers. It does not move, and therefore impedes your view. The one use case where we sometimes recommend a divider rail is when “split-tilt” is used with our front/center tilt rod. It is often nice to have that separation between the upper front/center control rod and the lower front/center control rod, so they do not accidentally clash or collide.
// See what middle dividers look like.

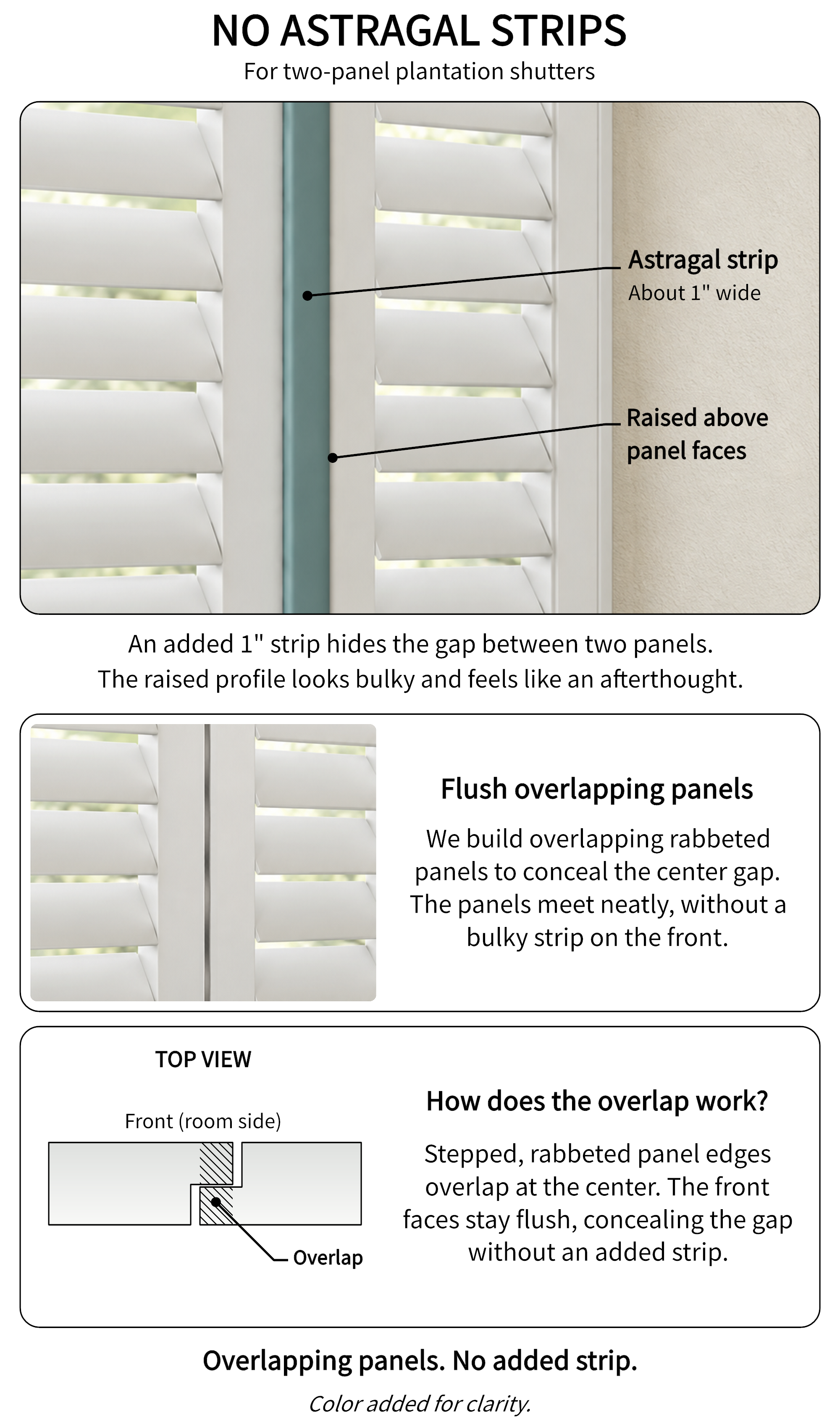

No Astragal Strips
No bulky, unsightly astragal strips
Many manufacturers use "astragal strips" to hide large gaps where two shutters meet. An astragal strip is usually an oversized 1" wide strip of material that is found in the center of two shutter panels to conceal the large gap underneath. Instead of astragal strips, we use interlocking panels that cleanly meet in the middle with only a small gap. Having no astragal results in a cleaner looking shutter, since it avoids bulky, oversized ways of concealing panel gaps.
// Check out examples of astragal strips.HTX Shutters · Houston, Texas
Top Styling FAQs
Every styling question we hear from Houston homeowners — louver sizes, split-tilt, frames, paint colors and panel configurations, answered by the people who build and install them.
The 4.5″ louver is our most popular size, used in about 65% of homes. It has 33% fewer louvers than the 3.5″, giving a more open view and a modern, contemporary look. The 3.5″ (35% of homes) is more classic and traditional. We also offer a 2.5″ louver, mainly for the shallow window casings common in the Heights, Bellaire, and West University — though its look is more historic and looks more at home in formal settings.
Yes — bigger louvers mean fewer slats blocking your view. Every louver edge is 0.47″ thick regardless of size, so the view you lose depends on how many louvers the window needs. Take a 70″ tall window: 3.5″ louvers require 20 slats, while 4.5″ louvers need just 15 — about a third fewer. Those 20 slats block 9.4″ of the view (20 × 0.47″); the 15 larger slats block only 7.05″. That's 2.35″ more open glass with the 4.5″ louvers — roughly 3.4% of the whole window.
No — 4.5″ louvers look great on small windows. With 33% fewer slats than the 3.5″, they maximize view and light exactly where glass is limited. A 3.5″ can appear slightly more proportional, but at the cost of more obstruction.
Wide openings — we regularly build for ~94″, ~105″, even 142″ windows — become 3-, 4-, 5-, or 6-panel configurations. We divide the frame with 1″ T-posts aligned to your window’s natural breaks, so the shutter layout mirrors the window itself.
Because the front tilt rod is the most common failure point on any plantation shutter. We steer most customers to our hidden/rear tilt system, which has no maintenance or longevity issues and is warrantied for life; front-tilt staple separation is covered for 12 months. We mainly use front tilt rods in historic areas like the Heights, Bellaire and West University, where the traditional look fits. This amounts to about 8% of our customer-base.
Split-tilt divides a shutter’s louvers into a top set and a bottom set that operate independently — close the bottom for privacy while the top stays open for sunlight. Common configurations are a 50/50 split or 33% top / 67% bottom, and unlike many companies, our design requires no fixed 3–4″ divider rail that blocks your view. The split can also be aligned to a window’s horizontal break, most commonly about 30″ up from the bottom, but splitting at "break" is typically too low to provide any real privacy or sun-control.
Decide window by window — not every window needs split-tilt. We commonly use 33/67 in bedrooms for extra privacy and 50/50 where privacy matters less. For small windows, sidelights, and doors, clients usually skip split-tilt. While 33/67 splits work well with mid-to-tall sized windows, applying a 33/67 split on a smaller height window can result in only a few louvers for the top set. This typically doesn't look as good, and shutters function better with at least three or four louvers on each set. Seven factors worth considering for split-tilt: window height, height off the floor, privacy needs, sitting vs. standing rooms, occupant heights, neighboring homes’ vantage points, and existing privacy from trees or fences.
The asymmetrical layout of the 33/67 is the most modern, as it strays from rigid, traditional rules of formal balance. A 50/50 split is less modern than the 33/67 split, but it is certainly more modern than placing the split at the "break" in combination with a divider rail.
No — split-tilt is free on any window. So are louver size, light Sherwin-Williams paint colors, tilt-rod style, and frame selection.
Inside-mount frames, for about 95% of installations. Inside-mount frames wrap the edge of the window casing, protrude less from the wall, and look integrated and built-in — though they block a window’s tilt-in cleaning function. Outside-mount frames sit on the drywall face, protrude further, and preserve tilt-in function; we recommend them mainly for 2+ story homes where upper windows are hard to clean. Some competitors push outside mounts simply because they’re easier to measure for and install.
Four inside-mount profiles and two outside-mount profiles, ranging from classic to modern:
- Transitional (inside, 2.125″) — classic elegance; suits detailed baseboard, door trim, or crown molding
- Modern (inside, 2″) — for simpler trim that still carries some detail
- Craftsman (inside, 2.25″) — for completely flat trim with sharp 90° angles
- Southwestern (inside, 2″) — for thin or round-edged flat moldings
- Deco (outside, 1.8″) — five-step beaded face; blends with traditional, ornate decor
- Flat (outside, 1.8″) — completely flat face for simple, contemporary decor
We build true arched plantation shutters with functional louvers all the way through the curve, framed by matching curved frames. We find this more timeless and elegant than sunburst/radial-style shutters.
Our favorites are Sherwin-Williams “High Reflective White” SW7757 and “Extra White” SW7006 — clean, bright, cool whites. Customer favorites also include “Snowbound” SW7004, “Pure White” SW7005, and the warmer “Alabaster” SW7008. Every order includes one custom light color (any Sherwin-Williams white, light beige, or light gray) in industrial-grade paint. When torn between two shades, go lighter — “lighter is brighter,” and it lifts the whole room.
A low-gloss sheen closest to satin. Shutters present a large surface that loves to bounce light, so low gloss cuts glare — and it hides minor surface imperfections better than a medium sheen or a semi-gloss would.
Every added panel costs roughly 15% of your view, so we build windows up to 36″ wide as one panel and up to 72″ as two panels (single panels to 47″ by exception). Our customers usually find that fewer panels gives a cleaner, more modern look - whereas too many panels can make shutters feel dated or too traditional. Prefer the multi-panel look? We’re happy to build it — additional panels are $95/panel on standard window sizes.
No — nearly every home ends up with a natural mix. Windows under 36″ default to one panel and windows over 36″ to two or more, and because individual panel widths stay similar across many configurations, the result looks balanced and preserves the view. If you choose two panels on a sub-36″ window, it is common to keep that configuration consistent on same-size windows in the room or line of sight.
Yes — about many of our customers keep curtains with shutters. The one rule: curtain hardware brackets can’t cover the first 2″ border around the top of the window opening.
We build black shutters, but recommend them selectively with realistic expectations for up-keep. Dark paint carries a surcharge (3–5 coats for full coverage), any scratch quickly reveals the white primer beneath, and black shows dust far more than any other color — expect a constant cleaning battle.
No — we believe natural light is healthy and necessary. Cover only the windows with a real privacy or sun-control need. Upper transoms (above living room windows, primary bedroom windows, or the front door) are the most common judgment call, and it’s a personal one. On many homes, the window above the bathtub in the primary bedroom is often frosted/opaque, so many people will leave that open as well. Others will cover it for styling continuity and assistance with heat prevention.
